Rotary machine special corona discharge from China manufacturer

Payment Terms:	T/T
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: FR-20-1

Production Capacity: need to be ordered

Delivery Date: 10days

output power: 2-3kw(optional)

Input frequency: 50/60KV

Output frequency: 12-20KHz

Speed: 5-100m/min

Means of Transport: Ocean,Air

Packing: wooden case

Brand Name: HeFeng

Input voltage:: 220V

Output voltage: 10-12KV

Treating width: 100-800mm

electrode: German square ceramic elect...

Used on: label rotray printing press, flexible graphic press, re-winder ,slitter,coating machine,laminating machine,etc.

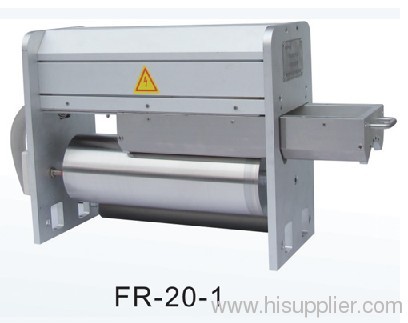

FR-20-1 conductive and non-conductive materials discharge rack

German square ceramic electrode

FR-20-1 conductive and non-conductive materials discharge rack

Mainframe:output power 2-3kw

Input voltage:220V

Input frequency:50/60KV

Output voltage:10-12KV

Output frequency:12-20KHz

Treating width:100-800mm

Speed:5-100m/min

Electrode:German ceramic square electrode.,standard one side with 4 pieces electrode(the electrode quatity according to customer requirements)

More suitable for installation in the narrow place

The ischarge electrode, can be replaced rapidly , easy cleaning and maintenance

the type of treating materials

Insulated materials corona is suitable for processing, PP, CPP, BOPP, PE, PET, HDPE, LDPE, PS, PI, PS, PC, PA, PVC, ABS, non-woven fabrics, synthetic paper material such as film, sheet, plate surface wet tension;

Conductive materials corona is suitable for processing of aluminum foil, aluminum plating film materials such as film, plate, sheet surface wet tension treatment;

Special-shaped material corona processor is suitable for all kinds of special-shaped plastic parts processing surface wet tension;

HeFeng corona generator ,disacharge rack ,transformers are perfectly matched to each other ,they work to gether at the same system resonant frequency,ensuring the highest possible efficienty

install in the production line
FR-20-1 conductive and non-conductive materials discharge rack
