Single side intelligent multi-function corona generator from China manufacturer

Single side intelligent multi-function corona generator

Payment Terms:	T/T,WU,
Place of Origin:	Guangdong, China (Mainland)


	Add to My Favorites
HiSupplier Escrow	Share \|

Product Detail

Model No.: CG-2000

Production Capacity: need to be ordered

Delivery Date: 20days

Input Voltage: 220V/380±10% 50/60HZ

output power: 3-15kw, adjustable

warranty: 1 year

Means of Transport: Ocean,Air,

Packing: wooden case

Brand Name: HeFeng

output Voltage: 7.5KV-16KV

output frequency: 15KHZ-40KHZ

dimension: 600*420*1200MM (External h...

3-15KW CG-2000 corona treater with Intelligent muti-function control system.

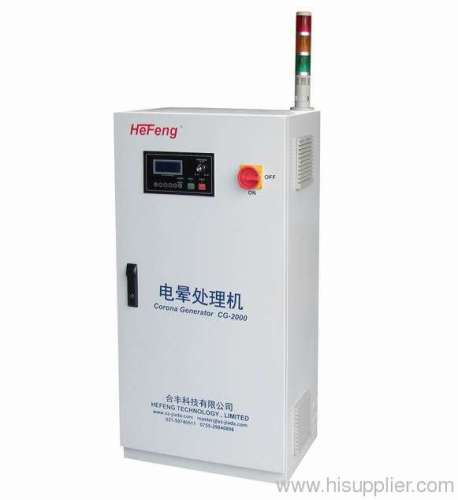

CG-2000(3-15KW) Adjustable Corona Generator

Model	Input Voltage	output voltage	output power	output frequency
CG-2000-20	AC220V ±10% 50/60Hz	7.5KV-15KV	2KW	15KHZ-40KHZ
CG-2000-30	AC220V ±10% 50/60Hz	7.5KV-15KV	3KW	15KHZ-40KHZ
CG-2000-40	AC380V ±10% 50/60Hz	7.5KV-15KV	4KW	15KHZ-40KHZ
CG-2000-60	AC380V ±10% 50/60Hz	7.5KV-15KV	6KW	15KHZ-40KHZ
CG-2000-80	AC380V ±10% 50/60Hz	7.5KV-15KV	8KW	15KHZ-40KHZ
CG-2000-100	AC380V ±10% 50/60Hz	7.5KV-15KV	10KW	15KHZ-40KHZ
CG-2000-150	AC380V ±10% 50/60Hz	7.5KV-16KV	15KW	15KHZ-40KHZ
CG-2000-200	AC380V ±10% 50/60Hz	7.5KV-16KV	20KW	15KHZ-40KHZ
CG-2000-300	AC380V ±10% 50/60Hz	7.5KV-16KV	30KW	15KHZ-40KHZ

1.Intelligent muti-function control system

Introduce smart chip processing .have working mode choose,many working parameter setting ,multiple man-machine operating interface and working status image-text display.

2.Digital LCD screen display

Working mode display

Current setting power level display ,current actual output power display

Continuous working time timing display

Machineimportantinformationstatus display(power ,frenquency,voltage ,current ,speed)

Discharge roller real-time speed display

3.Manual control and automatic working code(optional)

4.Remote operation control(optional)

5.When corona treater stop exhaust blower automatic delay turn off(optional)

6.A variety of corona treater working status alarm and equipment protection alarm(optional)

7.Support the audible and visual indication light(optional)

applied to:plastic film or plastic sheets surface treatment,such as ink printing, compound, blown film, coating, adhesive,casting,glue spreading.etc.

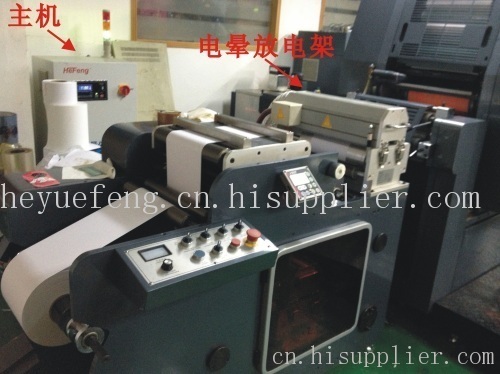

install in the production line

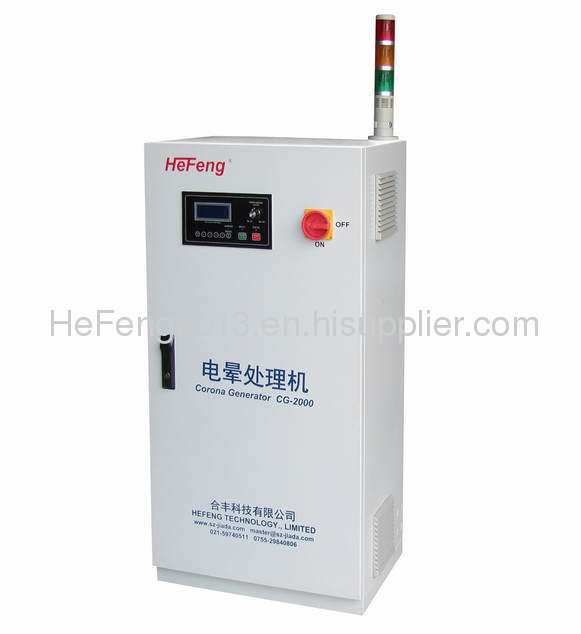

CG-2000(3-15KW) Adjustable Corona Generator

we take part in the 9th international high functionalfilms (Shanghai) exhibition

CG-2000(3-15KW) Adjustable Corona Generator

our certification

Reasons for choosing HeFeng:
1.HeFeng have beebn focused on the development and application of corona for many years,we are professional and experienced.
2.HeFeng system ensure that your production line has the maximum operational running time.
3.ALL machine parts are optimally selected and matched.
4.Hefeng corona have 1-year warrantee.
5.HeFeng corona generator are recognized as the corona industry standard.

For more details, please feel free to contact me, any inquiry from you is appreciated!
